Microsoft Dynamics 365 Finance and Operations (D365FO) uses an internal Azure Storage account as the default storage for various standard functionalities like:

• Attachments
• Document templates
• File download
• Printing via DRA
• etc.

It can also be used from custom code wherever it needs some file storage (permanent or temporary), as you can rely on the fact that it always exists in all environments.

Microsoft is deprecating the old way of accessing the D365FO internal Azure Storage account and introducing a new one. All developers that use an internal Azure Storage account in their custom code will need to learn the new approach and its limitations and adjust their custom code accordingly. Unfortunately, Microsoft has not yet published the documentation for the new API nor the guidelines for transition. That was the motivation for me to do some research and publish my findings in this article.

Old Way: Using Connection Strings

The old way of working with internal storage account in custom code is to get its connection string and to use the Azure Storage SDK libraries (Azure.Storage.* or old Microsoft.Azure.Storage.*) to access the storage account.

This connection string contains a valid account key which serves for authentication. Anyone with such connection string can get full access to the data in this storage account (data plane). This article explains how you can Connect to D365FO Azure Storage from MS Azure Storage Explorer.

Sample Azure Storage connection string:

(some parts are invalidated for security reasons)

Connection string access replaced by managed identity access

Azure team is discouraging the use of account key to access storage account, because it gives full permissions to anyone that knows it. One storage account can have just two account keys, which is useful for rotation, but you cannot have different keys for each user.

To overcome this limitation, role-based access control (RBAC) is a more secure alternative that allows fine-grained permissions and named access. It means that access to specific objects (storage accounts, containers, etc.) is granted by roles assigned to these objects (or parent objects) for Entra ID users and applications.

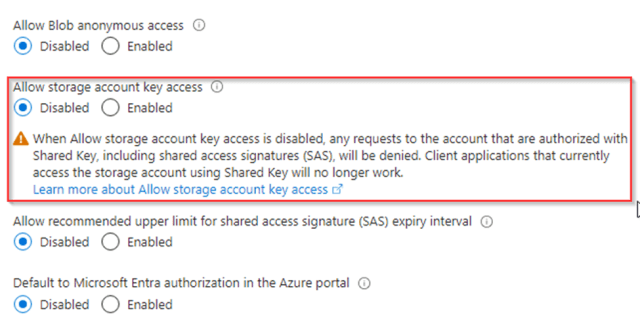

Because storage account key access is discouraged, you can disable it on your storage accounts. As I understand Microsoft will soon disable it on D365FO internal Azure storage account.

Managed identity access will be used instead of account key access. As I understand it will be a managed identity of an Azure container or virtual machine when runs additional service that take care of authentication. Only Microsoft internal code should be able to access this service and they treat these details as internal, do not reveal them and can change them without notice.

All new code required for this transition is already in 10.0.42 (some parts are already in 10.0.41), but it is flight-controlled. As we cannot control flights on Tier2+ environments, it means that even though your connection string-based code works now, it will just stop working someday in the near future on some environments without further notice.

The timeline for this transition is not clearly announced, but as I understood most of the tenants will be transitioned in first half of 2025. It should first apply to Sandbox environments and shortly afterward to Prod. There will be a transition period in which the customer can report a problem, and MS support can temporarily revert it to legacy (connection string based) access. Currently there is no way to simulate it to test that your code will work when managed identity access will be enforced.

Sharing links

The sharing links can be signed with an account key or user delegation key. The latter is more secure as the system validates the permissions of the key creator at every access and allows easier revocation.

Account SAS URL (no hard limit on expiration):

User delegation SAS URL (for security reasons max expiration date is 7 days):

With transition to managed identity access the API will return user delegation SAS sharing links and old account SAS link will not work anymore. Some months after this transition MS also plans to block public access to internal Azure storage account on the network level. It will only be available from AOS. Additional proxy service will be provided to expose files/containers publicly. As I understand the API will return these new sharing links (different hostname and path, but same parameters).

New Way: (SharedServiceUnitStorage API)

The following API will handle managed identity access (by inserting authentication header) when being called from D365FO. It is not documented, but you can find examples in standard code. The API is not new, but now you will be forced to use it which was not the case before.
Some of these methods return a connection string or take one as an input parameter. After the transition to managed identity access this connection string will contain an invalid account key. Such connection string cannot be used for access outside D365FO, but can be used with this D365FO API as the platform takes care of authentication.

The following API will handle managed identity access by inserting authentication headers when being called from D365FO. Below is an example:

SharedServiceUnitStorage API (Microsoft.DynamicsOnline.Infrastructure.Components):

• Category based CRUD operations for files – tracked and deleted after expiration
  (UploadData(), GetData(), DownloadData(), DeleteData(), GetCategorySasKey(), RevokeCategoryPolicy(), GetDataInCategory())
• Container based operations -
  (GetContainerLink(), GetFileLink())
• CloudStorageAccount / BlobServiceClient / TableServiceClient – raw access through Azure SDK clients, but with D365FO authentication
  (GetSharedServiceUnitStorageAccount(), GetSharedServiceBlobServiceClient(), GetSharedServiceTableServiceClient())

SharedServiceUnitStorage object is constructed as shown below. It will work in the future, just note that storageContext.StorageConnectionString might contain an invalid connection string.

Category based CRUD operations for files

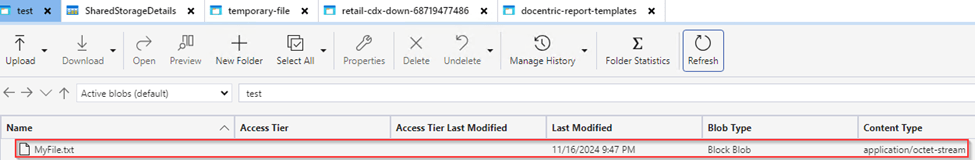

Category is a logical unit for storing files (BLOBs or data) on the storage (BLOB storage on cloud and filesystem on on-prem environments). In cloud files are usually stored in container with the same name as category, but for each file there is also record in ShareStorageDetails table on storage account. It contains data about retention (permanent, temporary), expiration and accessibility (private, public). D365FO automatically deletes expired temporary files.
Code sample (file upload, download, delete, sharing link, list files):

Get file download link:

If you use the same file name the file will be overwritten.

Files stored in category contain additional metadata in SharedStorageDetails table. If the file with the same name will be uploaded multiple times, only the last version will be stored, but each upload will contain a separate details record.

Container based operations

SharedServiceUnitStorage contains two methods to get a sharing link for container or file in container. Note that after transition to managed identity access it will be user delegation SAS link and account SAS link before it:

• string GetContainerLink(string containerName, bool isContainerPublic) – returns sharing link with max validity (7 days)
• string GetFileLink(string containerName,
    string fileName,
    BlobUrlPermission permission, /*Read, Write, NoPermission*/
    TimeSpan expirationDuration,
    bool useContentDisposition,
    bool invokedExternally)

CloudStorageAccount / BlobServiceClient / TableServiceClient

If you need a more advanced low-level methods you can still use client classes from Azure SDK, but you need to instantiate them through SharedServiceUnitStorage methods below in order to let the platform to handle the authentication.

• public CloudStorageAccount GetSharedServiceUnitStorageAccount()
  public CloudStorageAccount FetchSharedServiceUnitStorageAccount()
• public BlobServiceClient GetSharedServiceBlobServiceClient()
• public TableServiceClient GetSharedServiceTableServiceClient()

Code sample:

Summary

As we have seen low level access to D365FO internal Azure Storage account will be changed dramatically. If you have been using it with Azure Storage Explorer, long lasting sharing links or file shares will not be possible anymore. Your custom code needs to be validated to be in line with new rules and API. But here comes the catch, you cannot force the transition (neither revert it) on your test environment for testing purposes. MS will do the transition with their pace tenant by tenant, so it can happen that the customer will get it before its partner. Best you can do is to use presented standard API and hope for the best. MS will first do transition to managed identity access, then disable account key access and later they will move storage account to private network. In case of problems ask MS support to temporarily revert to legacy access.

Even though MS engineers have done a good job with redesigning and securing the storage access and even though they have put certain steps under flight control, the whole transition is still not testable and API documentation is missing. This leaves all others in uncertainty and I hope it will not become a pattern for the future.
